SWAFT BSS Introduce

* Example of Expansion

SWAFT

"SWAFT" is a portmanteau of 'Swap'(replacement) and 'Swift'(quick) representing a BSS platform service brand that enables rapid battery replacement.

BSS

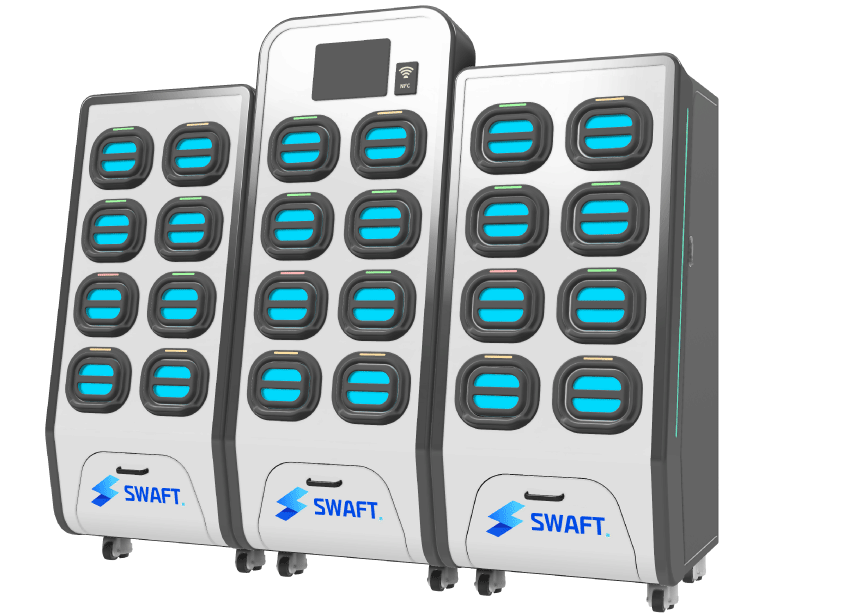

"BSS" is an abbreviation for "Battery Swapping Station" a battery replacement facility for E-Bikes where batteries can be exchanged.

ManufacturerCTNS Corporation
Product size
680*808*1742mm
Input voltage
220V(Single Phase)
Input current
80A MAX
Maximum output
15Kw MAX
Battery type
Li-ion
Charging voltage
65~84V
Charging current
15A MAX
Number of charging
batteries
8 EA

*SWAFT's batteries are compatible with all

E-BIKE models that adhere to battery standardization.

SWAFT BSS Introduce

* Example of Expansion

SWAFT


"SWAFT" is a portmanteau of 'Swap'(replacement) and 'Swift'(quick)
representing a BSS platform service brand that enables rapid battery replacement.

BSS


"BSS" is an abbreviation for "Battery Swapping Station" a battery replacement facility for E-Bikes where batteries can be exchanged.


ManufacturerCTNS Corporation
Product size680*808*1742mm
Input voltage
220V(Single Phase)
Input current80A MAX
Maximum output15Kw MAX
Battery typeLi-ion
Charging voltage65~84V
Charging current15A MAX
Number of charging batteries8 EA


*SWAFT's batteries are compatible with all E-BIKE models that adhere to battery standardization.

Product Strength

Assured Technical Expertise

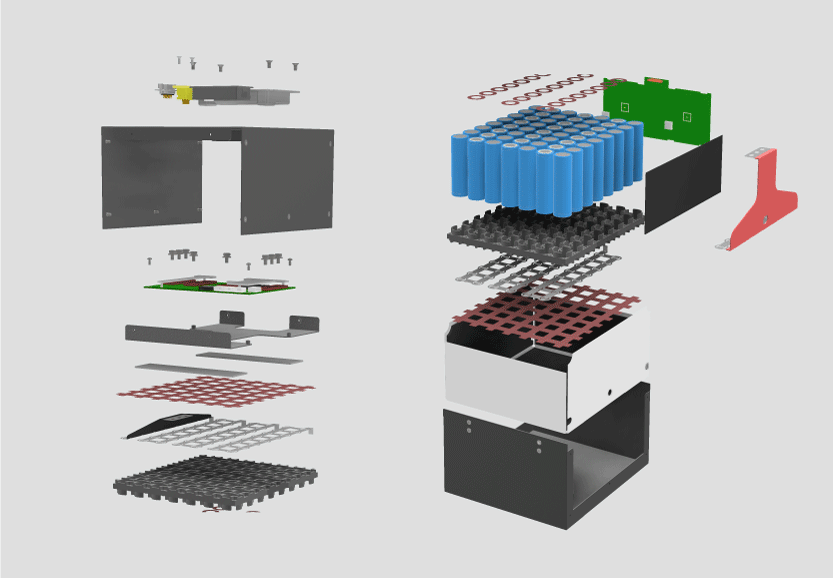

The reliability and safety of the battery pack depend on BMS(Battery Management System) technology In SWAFT BSS, a domestically developed BMS, which has been verified by authorized certification bodies is integrated. In addition, batteries assembled with our in-house battery pack manufacturing expertise ensure high quality and safety.

High-strength case

E-BIKE batteries are always susceptible to potential risks such as accidents, impacts, and vibrations. SWAFT BSS has enhanced safety by incorporating internal cushioning materials and utilizing aluminum for heat transfer, taking into account impact resistance and shock absorption.

Battery Management System

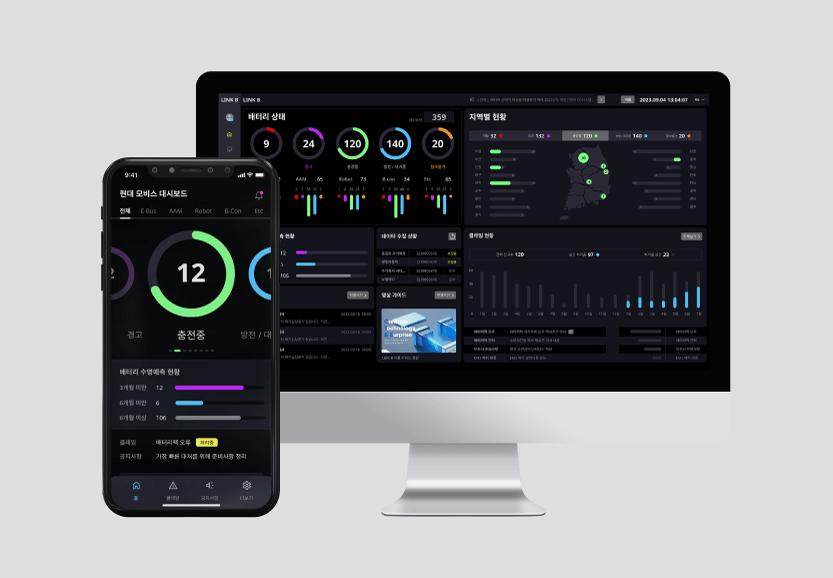

Administrators can monitor the location and status of batteries located globally in real-time.

In the event of any issues, they

can prevent accidents through notifications.

Emergency Discharge Function

In the event of a fire at the battery station, it could lead to significant property damage, including spreading to nearby shops and buildings.

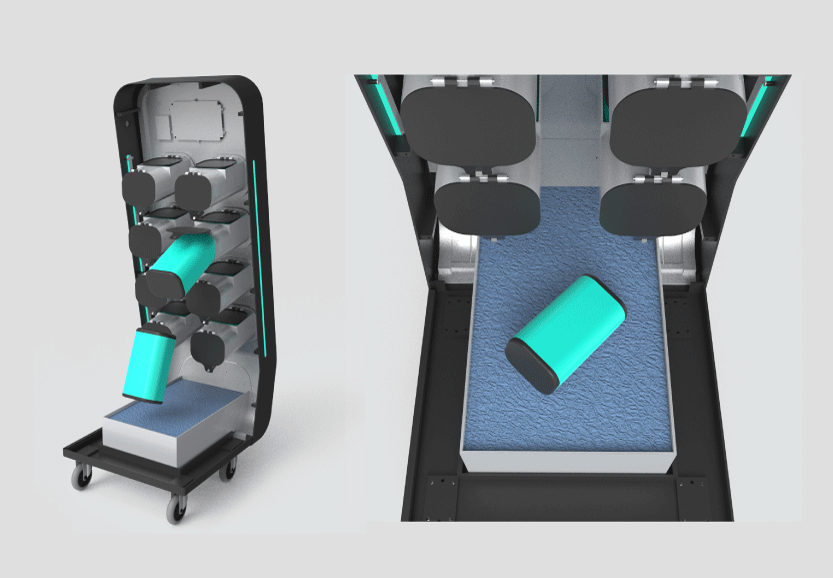

To prevent this, a temperature detection sensor has been implemented to automatically discharge the affected battery into a cooling reservoir when a fire is detected.

Product Strength

Assured Technical Expertise

The reliability and safety of the battery pack depend on BMS(Battery Management System) technology In SWAFT BSS, a domestically developed BMS, which has been verified by authorized certification bodies is integrated. In addition, batteries assembled with our in-house battery pack manufacturing expertise ensure high quality and safety.

High-strength case

E-BIKE batteries are always susceptible to potential risks such as accidents, impacts, and vibrations. SWAFT BSS has enhanced safety by incorporating internal cushioning materials and utilizing aluminum for heat transfer, taking into account impact resistance and shock absorption.






Emergency Discharge Function

In the event of a fire at the battery station, it could lead to significant property damage, including spreading to nearby shops and buildings. To prevent this, a temperature detection sensor has been implemented to automatically discharge the affected battery into a cooling reservoir when a fire is detected.

Battery Management System

Administrators can monitor the location

and status of batteries located globally in real-time. In the event of any issues, they

can prevent accidents through notifications.

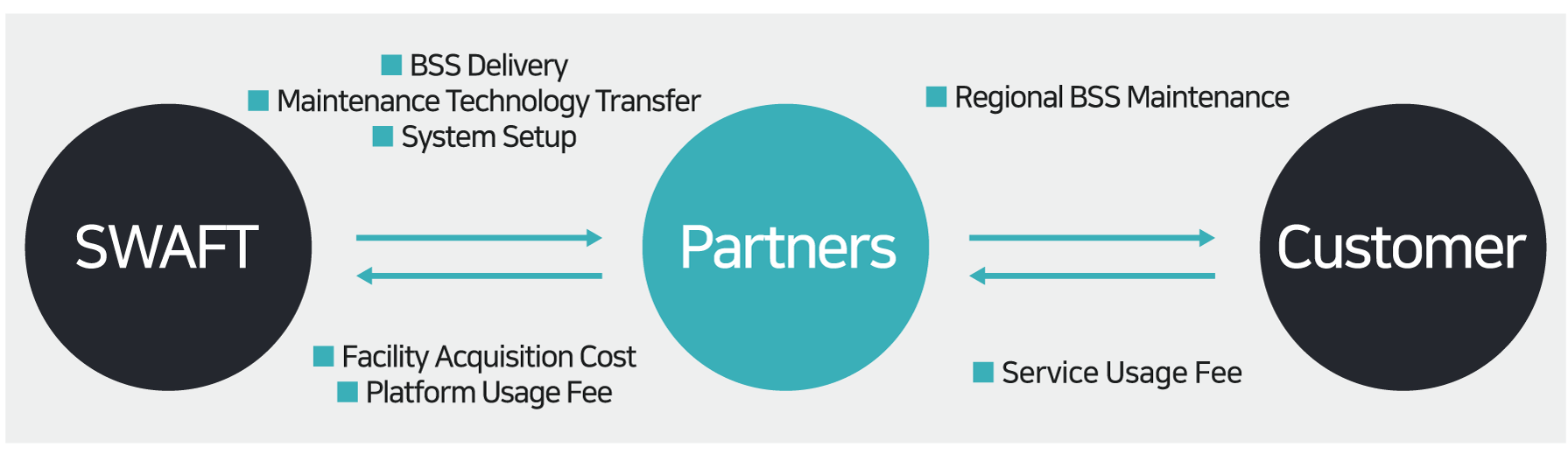

SWAFT's BSS business operates through three models

: partner-operated, municipality-operated, and directly operated.

Partners take over the BSS busines rights in certain regions to operate and manage them.
