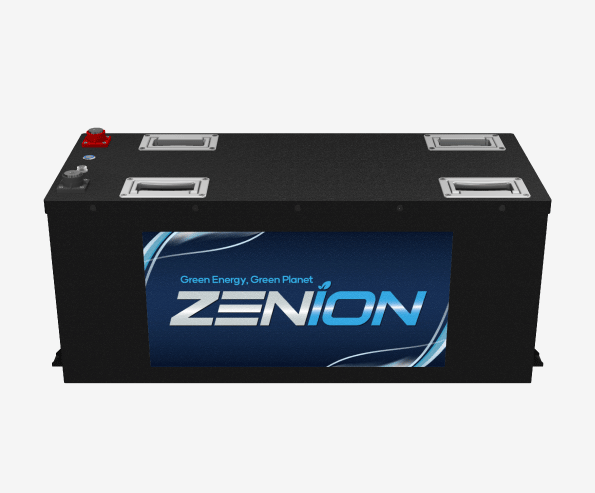

Product Image
Customizable
Tailoring
Available
LINK-B Service Support
Available
Support for CAN and RS Communication Protocols Available
Wireless Charging Solution Support Available
Specifications
01
Customizable
Tailoring Available
02
Support for CAN and RS
Communication
Protocols Available
03
LINK-B Service
Support Available
04
Wireless Charging Solution Support Available
Specifications
Product information | ||||
16S1P | 16S2P | 24S1P | 24S2P | |
| CELL | EVELF90K | |||
| BMS | DALY SMART BMS 250A | |||
| Size | 600x163x280mm | 710x280x245mm | 870x163x280mm | 1020x280x280mm |
| Weight | 43.1kg | 82.2kg | 63.3kg | 121.5kg |
| Terminal Voltage | 40V | 40V | 60V | 60V |
| Nominal Voltage | 51.2V | 51.2V | 76.8V | 76.8V |
| Full Charge Voltage | 58.4V | 58.4V | 87.6V | 87.6V |
| Total Capacity | 90Ah | 180Ah | 90Ah | 180Ah |
| Rated Output | 4608Wh | 9216Wh | 6912Wh | 13824Wh |
| Charging Mode | CC-CV Mode | |||
| Continouous Charging Current | ≤ 125A | |||
| Maximum Charging Current | ≤ 375A (1s) | |||
| Discharge Mode | CC Mode | |||
| Continuous Discharging Current | ≤ 200A | |||
| Maximum Discharging Current | ≤ 375A (1s) | |||
| Operating Temperature | Charge 0°C ~ 55°C Discharge -20°C ~ 55°C | |||
| Storage Temperature | Months: -20°C ~ 45°C 1 Year: 0°C ~ 35°C | |||
