Customizable
Tailoring
Available
LINK-B Service Support
Available
Support for CAN and RS Communication Protocols Available
Wireless Charging Solution Support Available
Specifications
Specifications

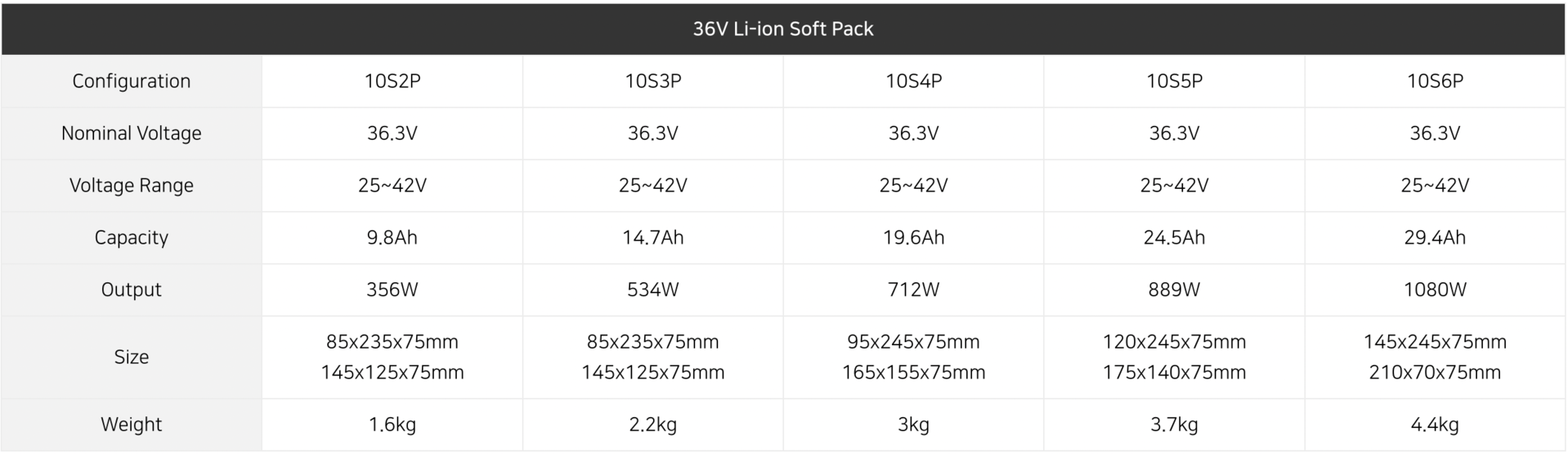

Micro Mobility 10S PCM Soft Pack | |||||
| 10S2P | 10S3P | 10S4P | 10S5P | 10S6P | |
| CELL | SAMSUNG SDI 50E | ||||
| BMS | PCM 30A | ||||
| Size | 65×235×75mm 125×105×75mm | 85×235×75mm 145×125×75mm | 95x245x75mm 165x155x75mm | 120×245×75mm 175×190×75mm | 145×245×75mm 195×185×75mm |
| Weight | 1.6kg | 2.4kg | 3.1kg | 3.9kg | 4.6kg |
| Terminal Voltage | 25V | 25V | 25V | 25V | 25V |
| Norminal Voltage | 36.3V | 36.3V | 36.3V | 36.3V | 36.3V |
| Full Charge Voltage | 42V | 42V | 42V | 42V | 42V |
| Total Capacity | 9.8Ah | 14.7Ah | 19.6Ah | 24.5Ah | 29.4Ah |
| Rated Output | 356W | 534W | 711W | 889W | 1067W |
| Charging Mode | CC-CV Mode | ||||
| Continuous Charging Current | ≤ 10A | ||||
| Discharge Mode | CC Mode | ||||
| Continuous Discharging Current | ≤ 30A | ||||
| Operating Temperature | Charge: 0℃ ~ 45℃ Discharge: -20℃ ~ 60℃ | ||||
| Storage Temperature | Months: -20℃ ~ 60℃ 3 Month: -20℃ ~ 45℃ 1 Year: -20℃ ~ 60℃ | ||||
| Certification | KC | ||||

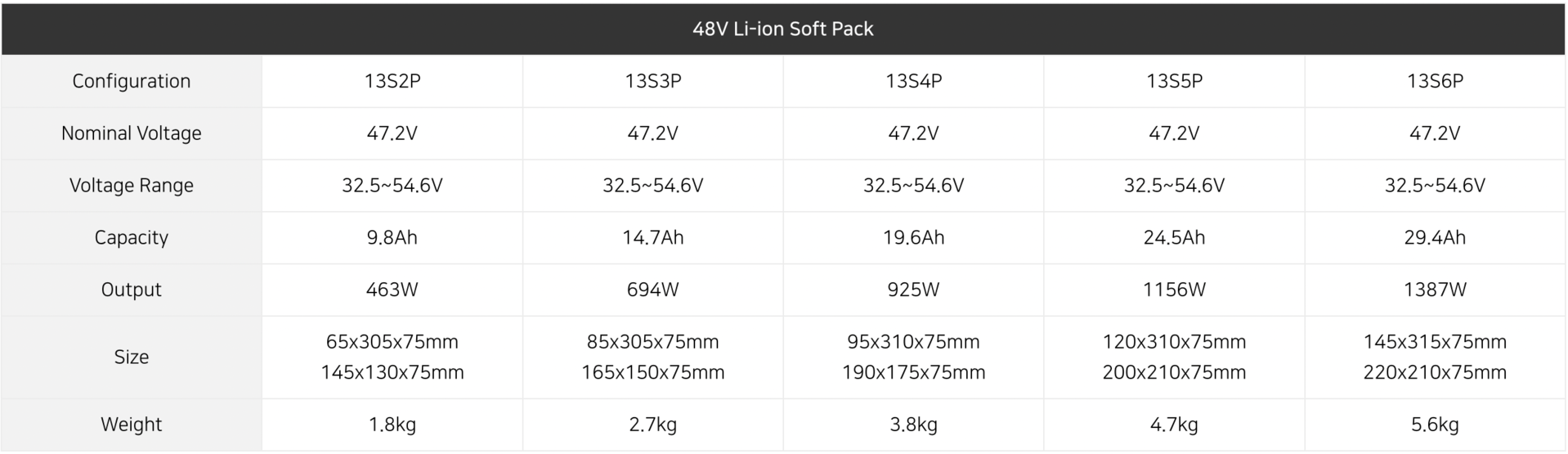

Micro Mobility 13S PCM Soft Pack | |||||
| 13S2P | 13S3P | 13S4P | 13S5P | 13S6P | |
| CELL | SAMSUNG SDI 50E | ||||
| BMS | PCM 30A | ||||
| Size | 65x305x75mm 145x130x75mm | 85x305x75mm 165x150x75mm | 95x310x75mm 190x175x75mm | 120x310x75mm 200x210x75mm | 145x315x75mm 220x210x75mm |
| Weight | 2.2kg | 3.1kg | 4kg | 5kg | 6kg |
| Terminal Voltage | 32.5V | 32.5V | 32.5V | 32.5V | 32.5V |
| Norminal Voltage | 47.2V | 47.2V | 47.2V | 47.2V | 47.2V |
| Full Charge Voltage | 54.6V | 54.6V | 54.6V | 54.6V | 54.6V |
| Total Capacity | 9.8Ah | 14.7Ah | 19.6Ah | 24.5Ah | 29.4Ah |
| Rated Output | 463W | 694W | 925W | 1156W | 1388W |
| Charging Mode | CC-CV Mode | ||||
| Continuous Charging Current | ≤ 10A | ||||
| Discharge Mode | CC Mode | ||||
| Continuous Discharging Current | ≤ 30A | ||||
| Operating Temperature | Charge: 0℃ ~ 45℃ Discharge: -20℃ ~ 60℃ | ||||
| Storage Temperature | Months: -20℃ ~ 60℃ 3 Month: -20℃ ~ 45℃ 1 Year: -20℃ ~ 60℃ | ||||
| Certification | KC | ||||

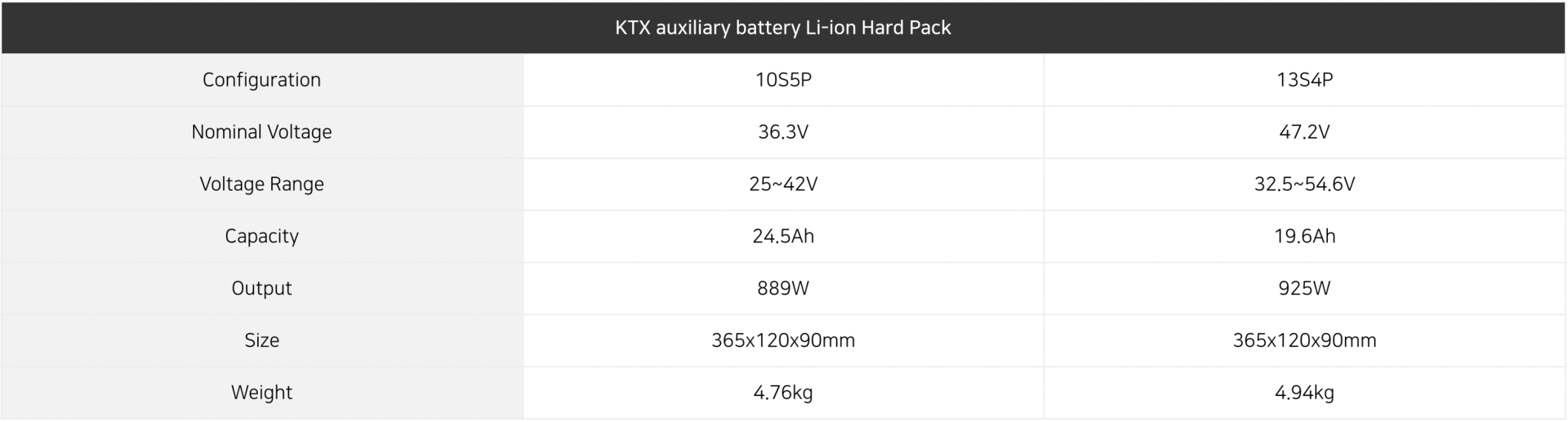

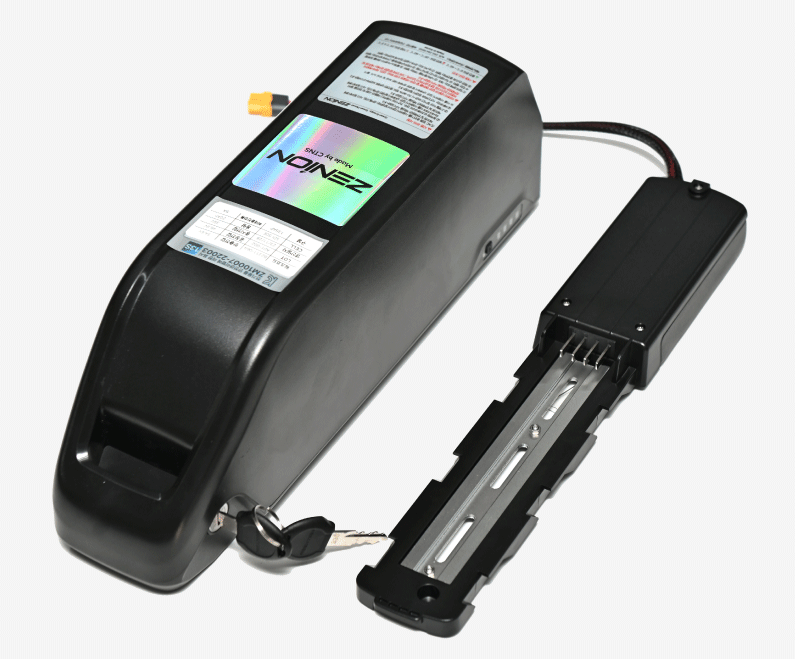

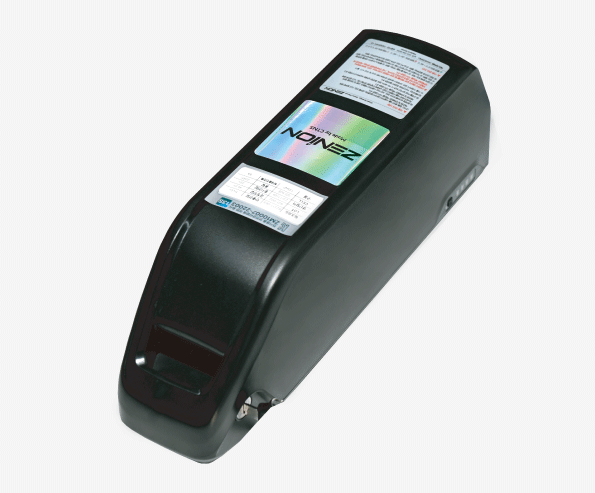

KTX Auxiliary battery Li-ion Hard Pack | ||
| 10S5P | 13S4P | |
| CELL | SAMSUNG SDI 50E | |
| BMS | PCM 30A | |
| Size | 365x120x90mm | 365x120x90mm |
| Weight | 4.76kg | 4.94kg |
| Ternminal Voltage | 25V | 32.5V |
| Norminal Voltage | 36.3V | 47.2V |
| Full Charge Voltage | 42V | 54.6V |
| Total Capacity | 24.5Ah | 19.6Ah |
| Rated Output | 889W | 925W |
| Charging Mode | CC-CV Mode | |
| Continuous Charging Current | ≤ 10A | |
| Discharge Mode | CC Mode | |
| Continuous Discharging Current | ≤ 30A | |
| Operating Temperature | Charge: 0℃ ~ 45℃ Discharge: -20℃ ~ 60℃ | |
| Storage Temperature | Months: -20℃ ~ 60℃ 3 Month: -20℃ ~ 45℃ 1 Year: -20℃ ~ 60℃ | |
| Certification | KC | |
Power-driven auxiliary battery Li-ion Hard Pack | ||||
| 10S3P | 13S3P | 14S3P | 16S3P | |
| CELL | SAMSUNG SDI 50E | |||
| BMS | PCM 20A | |||
| Size | 98x68x298mm | 98x68x378mm | 98x68x378mm | 98x68x418mm |
| Weight | 3kg | 3.5kg | 4kg | 4.5kg |
| Terminal Voltage | 25V | 32.5V | 35V | 40V |
| Norminal Voltage | 36.3V | 47.2V | 50.8V | 58.1V |
| Full Charge Voltage | 42V | 54.6V | 58.8V | 67.2V |
| Total Capacity | 14.7Ah | 14.7Ah | 14.7Ah | 14.7Ah |
| Rated Output | 534W | 694W | 747W | 854W |
| Charging Mode | CC-CV Mode | |||
| Continuous Charging Current | ≤ 10A | |||
| Discharge Mode | CC Mode | |||
| Continuous Discharging Current | ≤ 20A | |||
| Operating Temperature | Charge: 0℃ ~ 45℃ Discharge: -20℃ ~ 60℃ | |||
| Storage Temperature | Months: -20℃ ~ 60℃ 3 Month: -20℃ ~ 45℃ 1 Year: -20℃ ~ 60℃ | |||
| Certification | KC | |||
